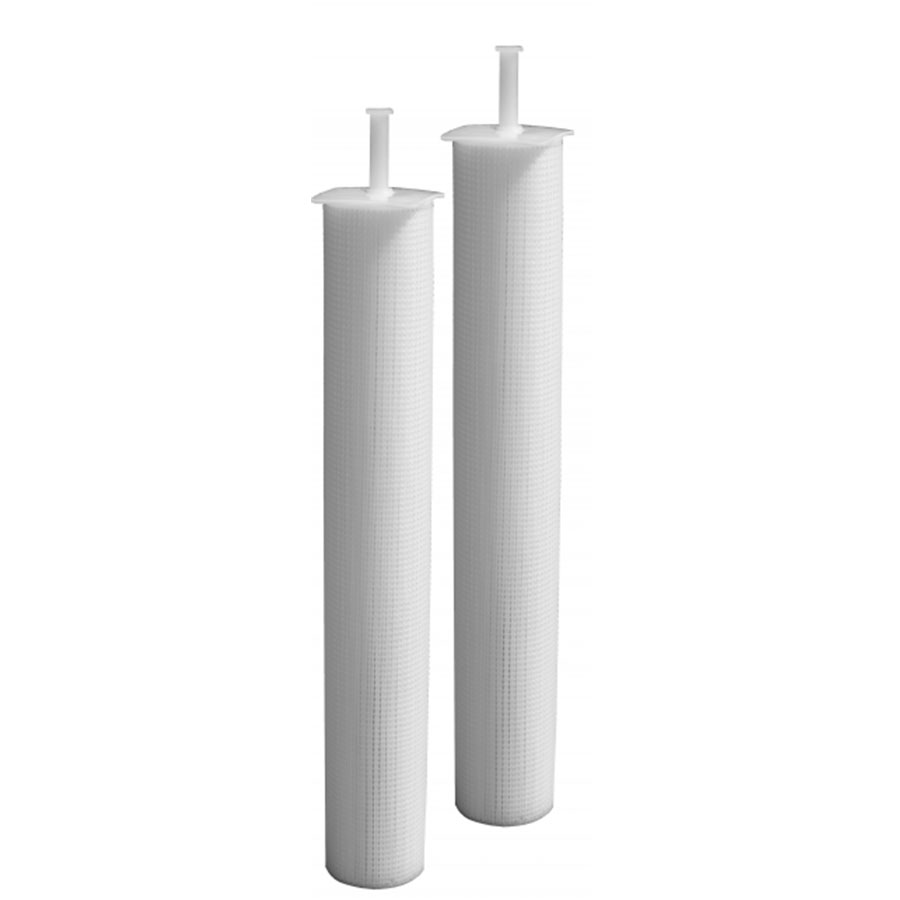

SupaPleat FFC
SupaPleat FFC filters are high surface area cartridges offering maximum efficiency and exceptionally high flow capabilities. Developed to suit large scale processes where high performance is required, the filters incorporate advanced pleated depth media providing low pressure loss and high dirt capacity.
Descrição
SupaPleat FFC filters are high surface area cartridges offering maximum efficiency and exceptionally high flow capabilities. Developed to suit large scale processes where high performance is required, the filters incorporate advanced pleated depth media providing low pressure loss and high dirt capacity.
The standard range is manufactured using polypropylene end caps and internal support core. Amazon Filters also offers cartridges manufactured with stainless steel cage and core and nylon end fittings. These are particularly suited for applications where higher temperature ratings are required or compatibility may be an issue. This makes SupaPleat FFC cartridges the ideal choice for a wide range of applications.
Thermal welding processes seal all components, eliminating adhesives and extractables and optimising cartridge integrity. In-house developments have optimised the pleat pack ensuring rigidity is maintained at all flow rates.
Product Features
- High surface area meltblown polypropylene or glass microfibre media operating in ‘out to in’ mode
- More robust stainless steel cage and core option available
- Nylon end caps option available
- Available with different connectors to allow retrofitting of existing high flow systems
- Special CRY Cryptosporidium removal grade designed for Food and Beverage applications
- All cartridges are thermally bonded and adhesive free
- XP Extended life version for more challenging applications
- Meets requirements on materials used for particles intended to come into contact with food as described in CFR Title 21, as well as the appropriate European guidelines
- Manufactured under strict control with batch number identification, giving full traceability on all components
Filter Housings
Amazon Filters manufactures a range of stainless steel and plastic housings for SupaPleat FFC cartridges including the 27 Series GRP Glass Reinforced Plastic housings with super duplex end fittings. This housing is particularly suited to brackish or seawater applications. Please consult our Sales Office for further details on these ranges.
Features and Benefits
- High flow rates and long life to minimise filtration costs
- Up to 60” length filters allow quick cartridge replacement
- Absolute removal ratings for consistent and reliable performance
- Available in numerous removal ratings (0.5 – 50µm) so suitable for a wide range of applications
- Cryptosporidium removal grade (CRY) with typical 104 log reduction value
- XP Extended life version for more challenging applications
- Stainless steel cage and core and nylon end caps versions available for more aggressive processes
- Full product validation guide available
- Manufactured under strict control with batch number identification, giving full traceability on all components
To download a copy of the SupaPleat FFC datasheet click here.
For a copy of Amazon’s High Flow Systems brochure click here.
Please consult our Sales office for further details on this product.
