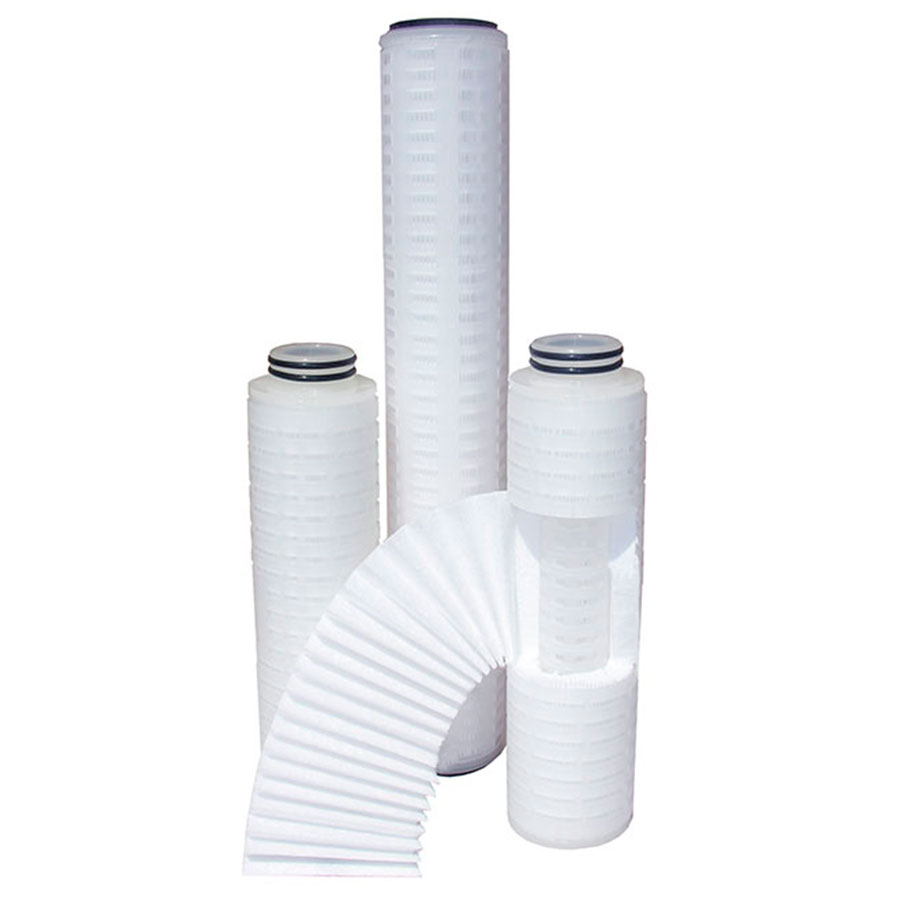

SupaPleat Plus Ink
The new SupaPleat Plus Ink filters range designed specifically for the Digital Ink Market, combine highly efficient removal of microgels and defined dispersion classification with high flow rates and low pressure drops. The filter cartridges are manufactured using a hybrid construction of pleated and depth technology in the same filter. This provides a cartridge that offers nine different multi-layered media configurations of varying efficiency, providing excellent dispersion classification whilst maximising colour intensity. This dedicated range of filters have been designed to provide optimum filtration for all print head technologies leading to improved jetting performance
Descrição
SupaPleat Plus Ink, absolute rated hybrid pleated depth cartridges have been developed in collaboration with manufacturers of bulk Digital ink.
The SupaPleat Plus Ink range combines highly efficient removal of microgels and defined dispersion classification with high flowrates and low pressure drops. This is achieved through a hybrid construction of pleated and depth technology in the same filter. Nine different media configuration including PP/GF combinations ensure a cost effective solution is available for every ink formulation.
Experience has shown that micron ratings assigned to filters based on standard methods such as ACFTD test dust do not correlate well with retention characteristics in complex ink systems. For this reason, grades have been assigned to the generic ink quality requirements of various printhead technologies. These can be used as a starting point for filter evaluation.
Features and Benefits
- High-loft meltblown depth media provides superior retention of gels prevents blocking of fine nozzles on printhead
- Multi layered media of varying efficiency provides excellent dispersion classification, maximising pigment transmission and therefore colour intensity
- Rigid open pleat configuration maximises flow and throughput on more viscous inks lowering consumable costs
- Absolute filter ratings provide a guarantee of ink quality. Print head performance is guaranteed
- Available in small scale format for laboratory trials. Allows the optimum filtration solution to be validated before implementing in production
To download a copy of the SupaPleat Plus Ink datasheet click here
Please consult our Sales office for further details on this product
