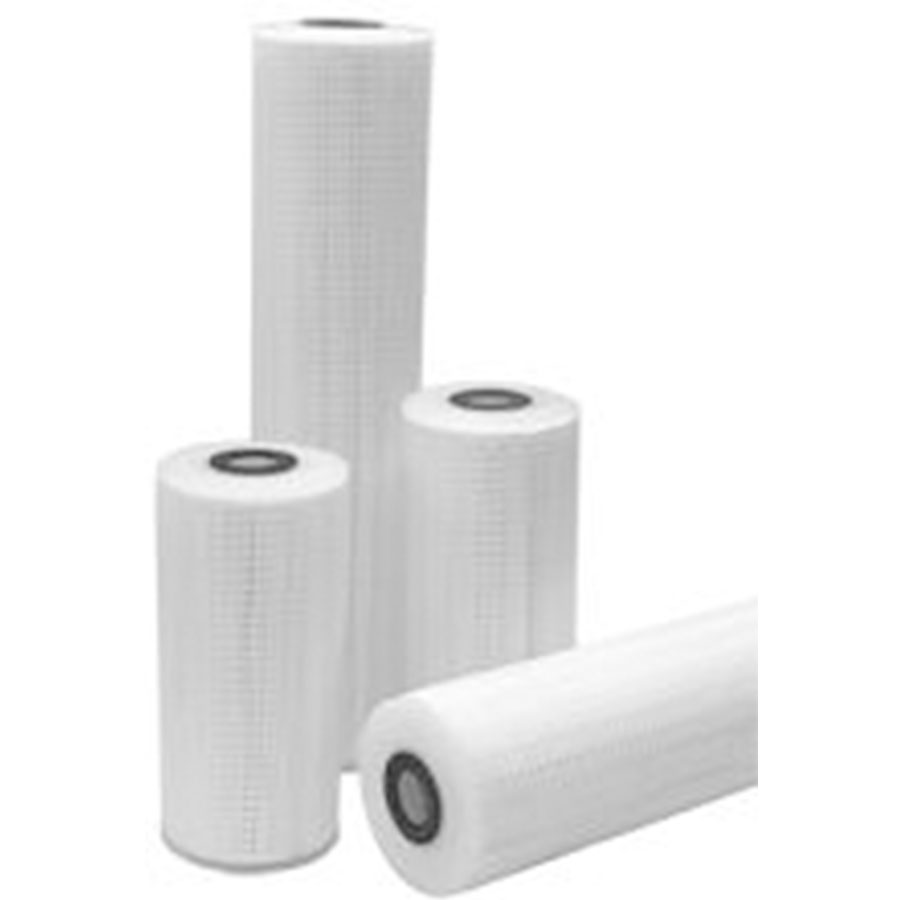

SupaPleat B-Blue
SupaPleat B-Blue filters are large diameter, high surface area pleated cartridges offering maximum efficiency and exceptionally high flow capabilities. They have been developed to suit larger scale processes where high performance is required. The filters incorporate advanced pleated depth media providing low pressure loss and high dirt capacity.
Descrição
SupaPleat B-Blue filters are Absolute rated to ensure reliable and consistent performance over a wide range of process conditions. This makes these cartridges the ideal choice for a wide range of applications. These filter cartridges are manufactured from pleated polypropylene depth media, end caps and internal support core.Thermal welding processes seal all components, eliminating adhesives and extractables and optimising cartridge integrity. In-house developments have optimised the pleat pack ensuring rigidity is maintained at all flow rates.
SupaPleat B-Blue cartridges feature:
- High surface area melt blown polypropylene media
- XP Extended life version available
- Wide chemical compatibility
- Special CRY Cryptosporidium removal grade designed for Food and Beverage applications
- All cartridges are thermally bonded and adhesive free
- Meets requirements on materials used for articles intended to come into contact with food as described in CFR Title 21, as well as the appropriate European guidelines
- Manufactured under strict control with batch number identification, giving full traceability on all components
Absolute Rated Filter Media
- Available in Absolute ratings from 0.5 to 50µm
- Consistent and reliable performance under a wide range of process conditions
- Beta 5000 rating
Filter Housings
Amazon Filters supplies both stainless steel and plastic housings for SupaPleat B-Blue filters. Please consult our Sales Office for further details on these ranges.
Features and Benefits
- High flow rates and long life help to minimise filtration costs
- High capacity filters means less filters to change-out
- Absolute removal ratings for consistent and reliable performance
- Wide chemical compatibility
- Available in numerous removal ratings (0.5 – 50µm) so suitable for a wide range of applications
- Extended life version available for more challenging applications
- Cryptosporidium removal grade (CRY) with typical 104 log reduction value
- Full Product Validation Guide available
- Manufactured under strict control with batch number identification, giving full traceability on all components,
To download a copy of the SupaPleat B-Blue datasheet click here.
Please consult our Sales office for further details on this product.
