Início / Filtro Cartucho / Cartucho de Profundidade / SupaSpun NN

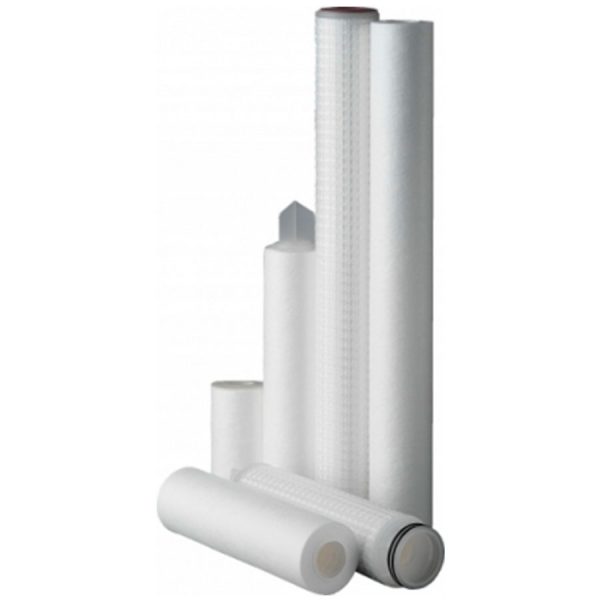

FILTRO CARTUCHO DE PROFUNDIDADE - SupaSpun-NN

SupaSpun NN

The SupaSpun NN Absolute rated cartridges are manufactured from nylon media providing improved chemical and higher temperature resistance. These are ideal for more challenging applications including solvent filtration, chemicals production, petrochemical processing and fuel filtration, providing reliable, consistent and absolute performance. They are available in a range of cartridge styles and sizes.
  • Descrição

Descrição

SupaSpun NNprecision graded density filter elements are a further development of our already well proven absolute rated depth type filter. These high performance cartridges excel in dirt holding capacity and give extremely low clean pressure losses as a result of the strictly controlled manufacturing of the fibre matrix.

SupaSpun NN filter cartridges are produced using an improved manufacturing process resulting in the following features:

  • Absolute Rated Filter Media
  • Available from 1 to 180µm
  • Nylon 6 media
  • Consistent reliable performance

Unique Construction

  • One piece high strength support core
  • High void volume, resulting in low clean Dp and excellent dirt holding capacity
  • End cap welded direct to the core for extra security and strength
  • Thermally bonded fibre matrix minimises fibre migration
  • One piece construction up to 1524mm (60”)
  • SupaSpun NN Advantage grade featuring moulded end caps and rigid outer support cage
  • Optional glass filled core and end caps for high strength / temperature applications

SupaSpun NN fibres are blown continuously onto a central support core, with fibre diameters controlled to produce different pore sizes throughout the extrusion process. All the layers are inter-linked to offer maximum support while ensuring that the high void volume is maintained, but with increasing fibre density towards the cartridge central core – therefore resulting in true depth filtration.

Elements are available up to 1524mm (60”) in length, either double open ended or with most common end cap fittings.

Features and Benefits

  • Absolute removal ratings for consistent and reliable performance
  • Graded density structure for maximum dirt holding capacity
  • Increased void volume giving high flow rates and low initial pressure losses
  • Wide chemical compatibility using nylon 6 media
  • Range of Absolute ratings from 1.0 to 180µm
  • Thermal bonding process minimises media migration and ensures minimal extractables
  • Identification data embossed on every cartridge
  • Advantage grade featuring moulded end caps and rigid outer support cage
  • Cartridges only need to be flushed with site water for 30minutes before the filters can be brought into full service

To download a copy of the SupaSpun NN datasheet click here.

Please consult our Sales office for further details on this product.

Produtos relacionados

  • FILTRO CARTUCHO PLISSADO - supaporehalar

    SupaPore Halar

    SupaPore Halar filters are constructed using Halar ECTFE media . Halar ECTFE is a fluoropolymer offering a unique combination of mechanical, thermal and chemical resistance and are specifically designed to offer excellent filter compatibility and effective removal of particulates from solvents and solvent based liquids. They also provide high flow rates, low pressure drops and long life.

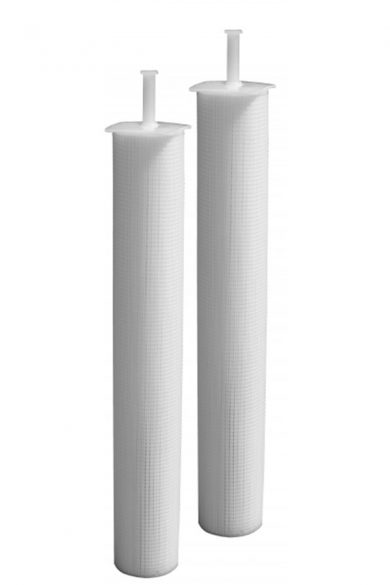

  • FILTRO CARTUCHO PLISSADO - Supapleat-FFC-Twin-e1432132583936
