Início / Filtro Cartucho / Cartucho Plissado / SupaPore FP
FILTRO CARTUCHO PLISSADO - supaporevpbev

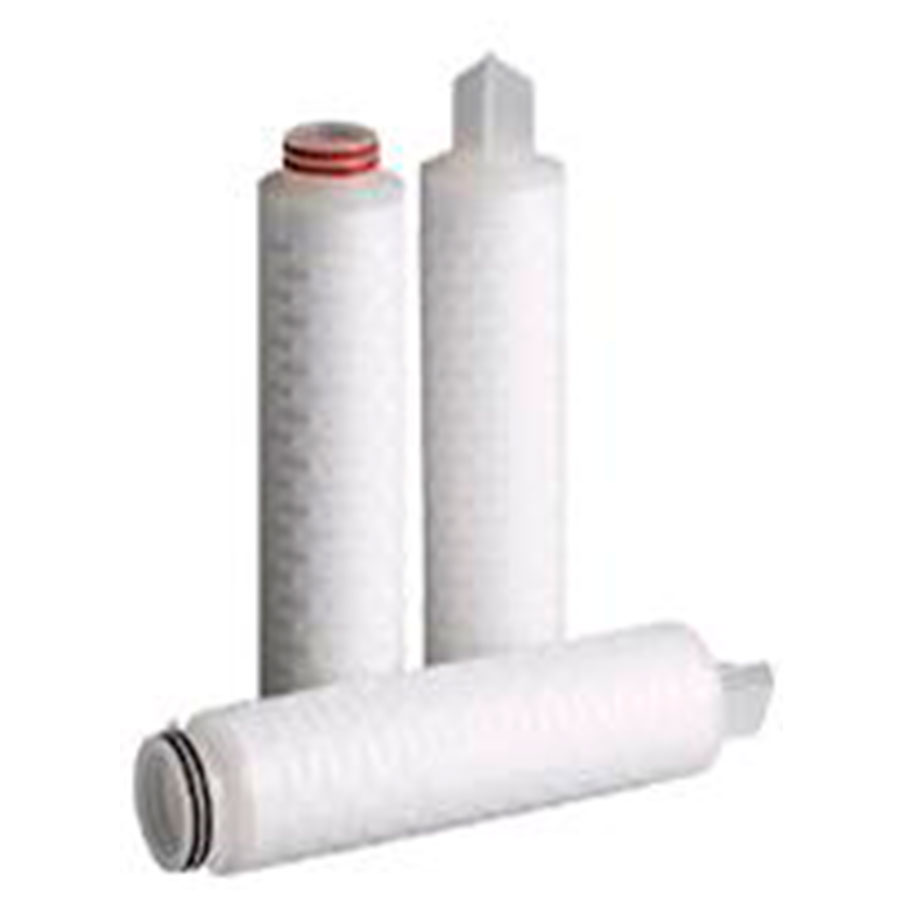

SupaPore FP

SupaPore FPG filters are designed as effective prefilters to membrane filters, as bioburden reduction filters and for final polishing applications. They are suitable for many liquid processing applications and can also be used for particulate control in air and gases. The SupaPore FPW range is specifically designed for use in beverages.
  • Descrição

Descrição

SupaPore FPG Microfiltration cartridges have been designed as effective membrane prefilters and as final polishing filters for all liquid processing applications.

Manufactured using polypropylene for the hardware, the SupaPore FPG utilises a superior Borosilicate Glass Microfibre as the media. This highly efficient pleated depth media offers excellent dirt holding capacity and retention levels, making it an ideal clarifier in many liquid processing applications. Its thermally bonded construction ensures minimal extractables and its high filtration efficiency makes it an excellent choice for use in beverage, fine chemical & water treatment processes.

The construction utilises thermal welding techniques to bond all the components therefore eliminating adhesives andextractables and optimising cartridge integrity.

The SupaPore FPG cartridges use pleated depth media and are available in Standard and Junior sizes with micron ratings from 0.3µm to 10µm in the full range of industry standard lengths and end cap styles.

For fine filtration and microorganism control in beverage applications Amazon offers the special SupaPore FPW range of filters.

Product Features

  • Borosilicate Glass Microfibre media
  • Epoxy binding for maximum compatibility
  • Polypropylene hardware with Polyester drainage layers
  • Absolute removal ratings Beta ratio 5000
  • Modular construction
  • Standard and Junior Configurations
  • Graded density media for optimum dirt holding capacity
  • Materials meet US FDA CFR Title 21 requirements
  • All polmeric materials meet the requirements for food contact as detailed in European Regulation (EC) Number 1935/2004

Suitable for most sanitisation regimes including steaming, autoclaving, hot water flush and most common sanitising agents.
(Note: Steaming, autoclaving and hot water sanitisation must use the glass filled end-cap option)

Amazon Filters manufactures a comprehensive range of filter housings for SupaPore cartridges including the industrial 50 and 60 Series and the 70 Series for hygienic applications. Please consult our Sales Office for further details on the full range.

Features and Benefits

  • Absolute removal ratings for consistent and reliable performance
  • Pleated depth media for maximum dirt holding capacity
  • High surface area giving high flow rates and low initial pressure losses
  • Range of Absolute ratings from 0.3 to 10µm
  • Thermal bonding process eliminates adhesives and ensures minimal extractables
  • Identification mark on every cartridge
  • Full product guide available

To download a copy of the SupaPore FPG datasheet click here.

To download a copy of the SupaPore FPW datasheet click here.

Please consult our Sales office for further details on this product.
