Início / Filtro Cartucho / Cartucho Plissado / SupaPore PP
FILTRO CARTUCHO PLISSADO - supaporepp

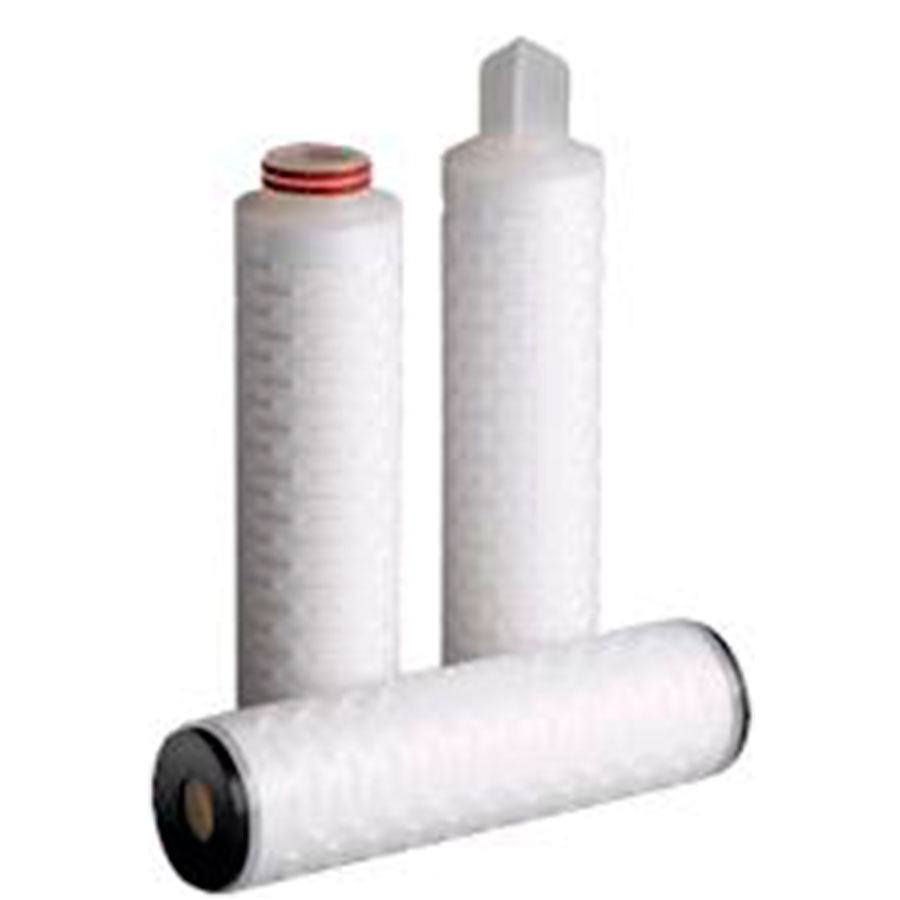

SupaPore PP

All polypropylene SupaPore PPG filters are designed as effective prefilters to membrane filters and as final polishing filters. They are suitable for many liquid processing applications and can also be used for particulate control in air and gases. They are available in a range of absolute removal ratings and offer excellent chemical compatibility.

  • Descrição

Descrição

SupaPore PPG Microfiltration cartridges have been designed as an effective membrane prefilters and as final polishing filters for many liquid processing applications.

Manufactured using 100% polypropylene media, drainage layers and hardware, the SupaPore PPG pleated depth cartridge offers excellent chemical compatibility across a wide range of liquid processing applications. Its thermally bonded construction ensures minimal extractables and its high filtration efficiency makes it an excellent choice for use in many liquid processing applications.

The construction utilises thermal welding techniques to seal all the components therefore eliminating adhesives and extractables and optimising cartridge integrity.

SupaPore PPG cartridges use pleated depth media and are available in standard diameter and Junior sizes with micron ratings from 0.2µm to 40µm in the full range of industry standard lengths and end cap styles.

Product Features

  • 100% polypropylene construction
  • Absolute removal ratings (Beta ratio 5000)
  • No fibre migration
  • Modular construction
  • Standard and Junior configurations
  • Materials meet US FDA Title 21 and USP Class VI requirements

Suitable for most sanitisation regimes including steaming, autoclaving, hot water flush and most common sanitising agents.
(Note: Steaming, autoclaving and hot water sanitisation must use the glass filled end-cap option)

Amazon Filters manufactures a comprehensive range of filter housings for SupaPore cartridges including the industrial 50 and 60 Series and the 70 Series for hygienic applications. Please consult our Sales Office for further details on the full range.

Features and Benefits

  • Absolute removal ratings for consistent and reliable performance
  • Pleated depth media for maximum dirt holding capacity
  • High surface area giving high flow rates and low initial pressure losses
  • Wide chemical compatibility using 100% polypropylene to meet FDA requirements
  • Range of Absolute ratings from 0.2 to 40µm
  • Thermal bonding process eliminates adhesives and ensures minimal extractables
  • Identification mark on every cartridge
  • Full product guide available

To download a copy of the SupaPore PPG datasheet click here.

Please consult our Sales office for further details on this product.
